    What is a warmer?

    Blood/Infusion warmers are used to warm refrigerated and room-temperature fluids that are being administrated to the patient.
    Administration of cold fluids can cause the body temperature to drop.
    The patient's core body temperature decreases especially in 30 minutes from induction of anesthesia.
    The low body temperature during surgery may result in hypothermia.

    Benefit of ANIMEC warmers

    • High Safety Mechanism
    • High Durability
    • Easy Maintenance

    Applications

    • Transfusion/Infusion at middle flow rate: ANIMEC AM-301
    • Transfusion/Infusion during operations : ANIMEC AM-4
    • Transfusion/Infusion at low flow rate : ANIMEC AM-2S
    • Infusion in emergency vehicles : Flexwarmer
    • Enteral Nutrition : LIFORT
    • Veterinary care : TEMPCARE

    General Description

    The ANIMEC AM-301 is an electrically powered warmer which warms up refrigerated infusion/blood to near body temperature before delivering to the patient. The heating plate applies heat to flowing fluid via the tube placed in its channel. The unique design of channel offers two ways of tube setting. With single channel setting, the maximum flow rate is 15ml/min for achievable temperature. Dual channel setting is adequate when faster flow (up to 20ml/min) and/or higher warming is required. The device is available for two standard tube sizes 4mmØ and 5mmØ.
    The software controls the temperature of the heating plate and enables the fluid to be heated up to the target temperature at exit set by the user at either 36ºC or 39ºC. Alarm and other over-heat protection ensure safe use.

    Flow rate1 - 20 ml/min
    Output temperature28ºC - 42ºC
    Safety featuresCascade control, Audible/Visual alarm and Thermal cutoff
    Size265 x 110 x 55 mm
    Weight1kg
    OthersPre-operation alarm test


    ANIMEC AM-301 BROCHURE


    Benefits

    • No disposable set to save running costs
    • Temperature setting 36ºC or 39ºC
    • Audible and Visual alarm
    • Easy maintenance

    Warming Performance

    General Description

    The FLEXWARMER is an infusion warmer which does not require electricity or a battery. The fluid is warmed up using the heat generated by the heating pack. The device is available for two standard tube sizes 4mmφ and 5mmφ. Suitable for emergency vehicles, field use, rescue, etc.

    Flow rate1 - 8ml/min.
    Output temperature25ºC - 42ºC
    Size185 x 82 x 47 mm
    Weight470g
    FeaturesNo electricity or a battery
    Heating pack: Reusable up to 200 times

    Flexwarmer BROCHURE

    Benefits

    • Fully portable
    • Cost-effective
    • Small and lightweight

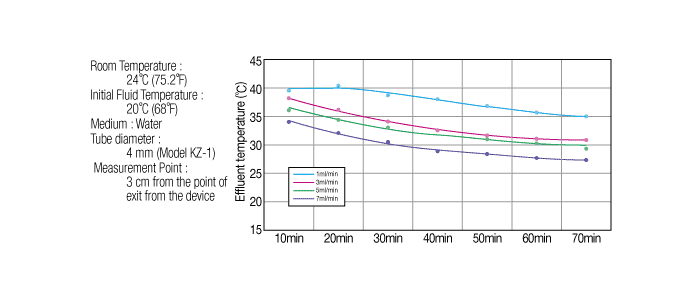

    Warming Performance

    General Description

    The ANIMEC AM-4 is an electrically powered dry warmer that supplies external heat to blood/infusion via the L-fusion disposable warming bag placed between aluminum heating plates. It's simple to use. Maintenance is free except cleaning.

    Flow rate0 - 160ml/min (with an infusion pump)
    0 - 60ml/min (gravity flow)
    Output temperatureAM-412: 31ºC - 40ºC
    AM-413/AM-412-T: 30ºC - 37ºC
    Safety featuresThree independent circuits for prevention of overheating, Audible / Visual alarm and Thermal cutoff
    Size266 x 182 x 78.5 mm
    Weight3kg
    OthersL-fusion warming bag set (LF-D)

    ANIMEC AM-301 BROCHURE

    Benefits

    • Automatic Temperature Control
    • Rapid warm-up
    • Audible and Visual alarm
    • High durability

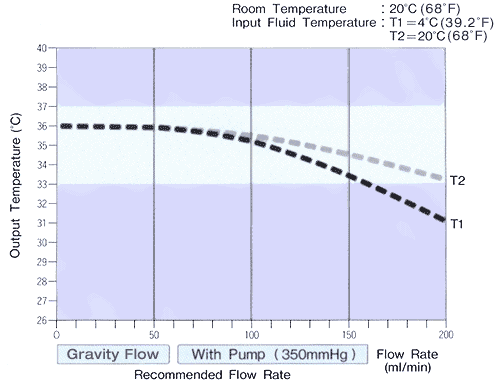

    Warming Performance

    AM-2SLIFORTTEMPCARE

    ANIMEC AM-2S

    -- DISCONTINUED --

    General Description

    The ANIMEC AM-2S is an electrically powered dry warmer which supplies external heat to the plastic tubing incorporated in intravenous administration sets. The IV Tube is placed in the ‘S’ shaped channel of the aluminum heating plate. This simple-to-use device is available for two tubing sizes 4mmØ and 5mmØ.

    Flow rate1 - 12ml/min
    Output temperature27ºC - 37ºC
    Safety featuresAutomatic temperature control with multiple sensors and Thermal cutoff
    Size176 x 65 x 37 mm
    Weight560g

    ANIMEC AM-2S Brochure

    Benefits

    • No disposables
    • Quick set-up
    • Less heat loss after warming
    • High durability



    LIFORT

    -- DISCONTINUED --

    General Description

    The LIFORT is an enteral nutrition warmer to help reduce patient's discomfort during enteral administration. This electrically-powered dry warmer supplies external heat to fluid via the plastic tubing placed in the "S" shaped channel of the aluminum heating plate. The device is available for standard tubing size 5mmφ.

    Flow rate0 - 7ml/min
    Output temperature32ºC - 41ºC
    Safety featuresAutomatic temperature control with multiple sensors and Thermal cutoff
    Size176 x 65 x 37 mm
    Weight560g

    LIFORT Brochure

    Benefits

    • No disposables
    • Quick set-up
    • Less heat loss after warming
    • High durability



    TEMPCARE

    -- DISCONTINUED --

    General Description

    The TEMPCARE is a fluid warmer intended for small to medium animals such as dogs and cats. This electrically-powered dry warmer supplies external heat to fluid via the plastic tubing placed in the "S" shaped channel of the aluminum heating plate. The device is available for common tubing size 5mmφ.

    Flow rate0 - 7ml/min
    Output temperature32ºC - 41ºC
    Safety featuresAutomatic temperature control with multiple sensors and Thermal cutoff
    Size176 x 65 x 37 mm
    Weight560g

    TEMPCARE Brochure

    Benefits

    • No disposables
    • Quick set-up
    > Top
    Q. Is a special disposable set required?
    Answer:
    AM-4
    Yes. L-Fusion disposable set

    Others
    No. A standard infusion/transfusion tube set can be used.
    AM-301, AM-2S and FLEXWARMER: available for 4mmφ and 5mmφ.
    LIFORT and TEMPCARE: available for 5mmφ.
    Make sure to select the appropriate model or tube.
    If a thinner tube is used, the warming performance will decrease.

    Q. Why does an air bubble appear in the tube when using the warmer?
    Answer:
    Fluid bags generally contain air. Tiny bubbles join forming into larger bubbles as the fluid is warmed. The volume of air in a bag does not increase by warming.
    It's advisable to use a tube with a drip chamber or bubble trap, etc. to avoid delivering air to the patient.
    L-Fusion disposable set has a bubble trap.

    Q. Is the temperature adjustable?
    Answer:
    AM-301
    Yes. 36°C or 39°C

    Others
    No. The warming temperature is automatically controlled at pre-set temperature.

    Q. Where should be a pump connected when used together with the warmer?
    Answer:
    Join the pump before the warmer.

    Q. Is the warmer battery operated?
    Answer:
    None of the warmers are battery-powered devices.

    Q. Why does the temperature on the display disappear? (AM-4 only)
    Answer:
    When the temperature of the heating plate reaches a certain level, the power supply to the heater stops temporarily to prevent over-heating and the display shows no temperature.
    This is possibly caused by the empty bag, stopped flow or improperly setting of L-fusion set.
